Towing heavy trailers or vehicles requires precise control, dependable stopping power, and smooth, predictable braking. Selecting the right brake controller can make the difference between a safe, controlled stop and a jerky, unsafe experience. Proportional brake controllers, which match the trailer’s braking intensity to the tow vehicle’s deceleration, have become the standard for serious haulers.
From high-end units like the Tekonsha P3 and REDARC Tow-Pro Elite V3 to innovative wireless solutions such as the CURT Echo and Elecbrakes, modern controllers offer features like adjustable boost, multi-axle support, and real-time diagnostics.
Some systems, like the Demco Duo, are designed specifically for flat-towing vehicles, providing permanent, worry-free operation. Whether hauling campers, horse trailers, or heavy utility loads, these controllers ensure smoother stops, reduced brake wear, and enhanced safety, giving drivers confidence on highways, steep grades, and challenging terrain.

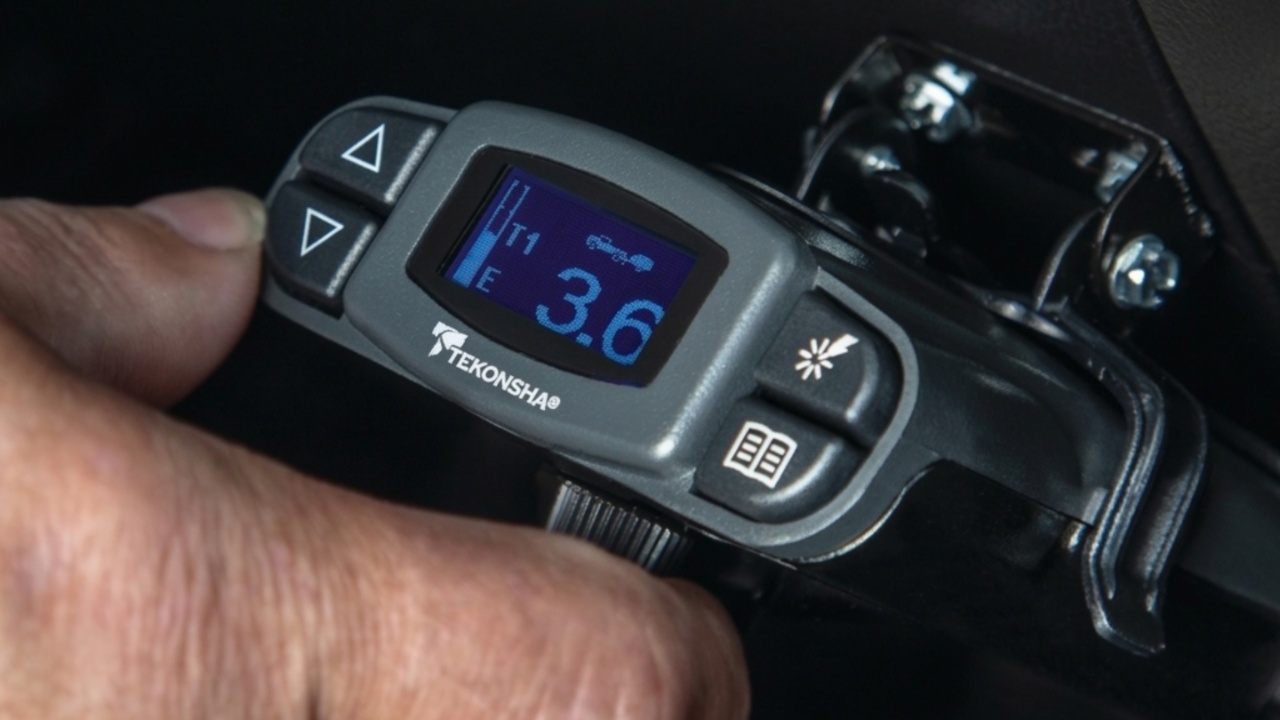

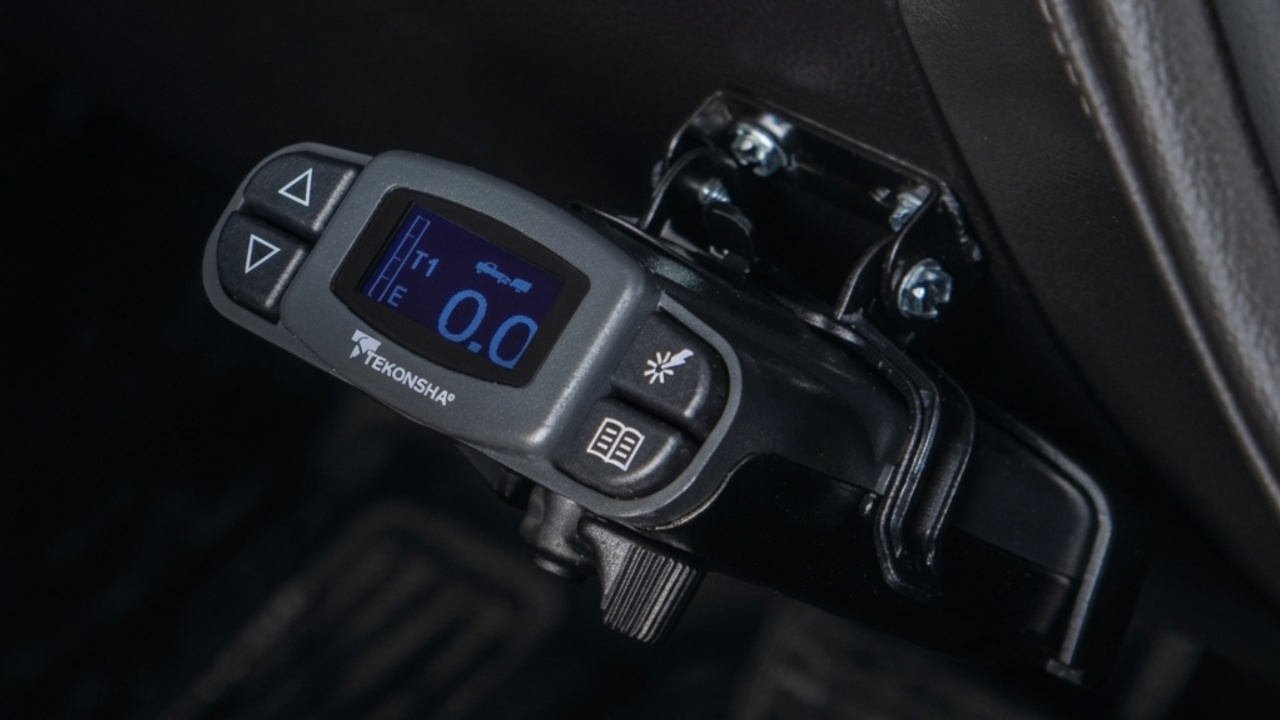

1. Tekonsha P3 Electronic Brake Control: Advanced Proportional Braking for Heavy Hauling
The Tekonsha P3 Electronic Brake Control is widely regarded as one of the most advanced under-dash trailer brake controllers available. Designed for heavy towing, it features proportional, sensor-based technology that ensures smooth braking by matching the trailer’s stopping power to the deceleration of the tow vehicle.
This system prevents jerking or pushing, providing a consistent, controlled stop. The P3 supports trailers with up to four axles and is compatible with both electric and electric-over-hydraulic braking systems, making it highly versatile for a range of towing setups.
One of the standout features of the P3 is its “Boost” capability, which allows drivers to select from three levels of additional initial braking power. This is especially beneficial when hauling heavier trailers or handling challenging driving conditions.
The unit also offers a manual override lever, giving drivers immediate control over trailer braking in emergency situations or for precise stopping. Its proportional braking, combined with the boost function, ensures both safety and confidence when towing substantial loads.
The P3 is also equipped with a large, tri-lingual LCD screen that displays real-time diagnostics, including battery voltage and output current. Users can store up to five different trailer profiles or driver preferences, allowing quick adjustments when switching between trailers.
This user-friendly interface enhances control and makes monitoring trailer performance straightforward. The unit’s plug-and-play installation and snap-in dash mounting clip further simplify setup, though its larger size may pose challenges in vehicles with limited dash space or knee airbags.
The Tekonsha P3 is praised for its reliability, smooth braking performance, and versatility. While its size is larger than some newer “hidden” brake controllers and the manual override can require practice to operate, the P3’s customizable settings, robust diagnostics, and advanced proportional technology make it a top choice for serious haulers. Drivers who frequently tow multiple trailers or carry heavy loads benefit from the performance, control, and confidence this controller provides.

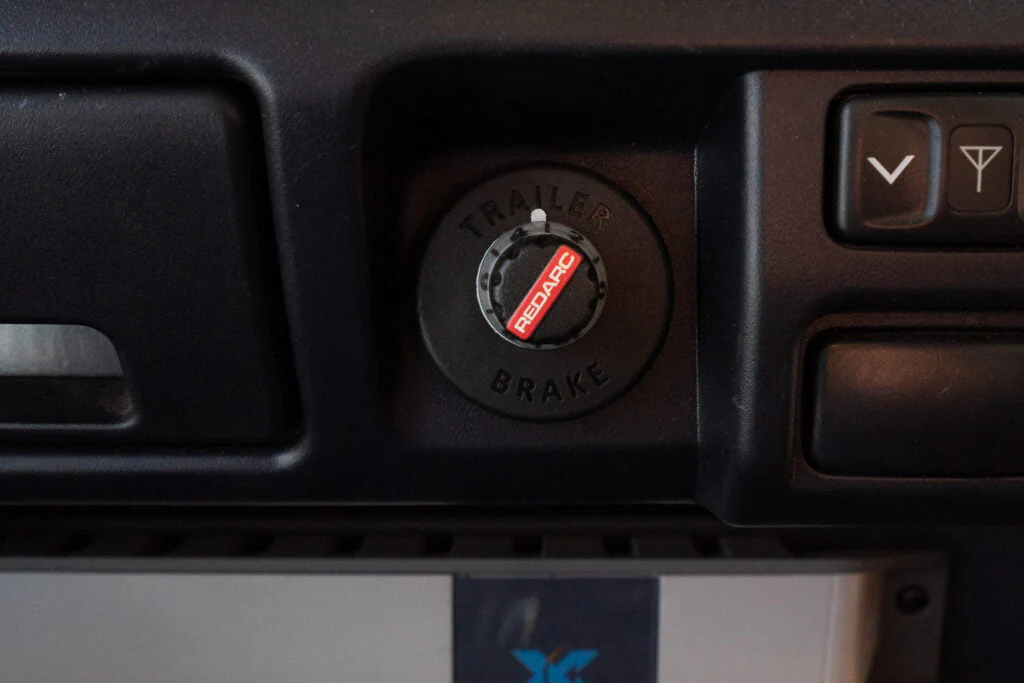

2. REDARC Tow-Pro Elite V3: Premium Dual-Mode Trailer Brake Controller
The REDARC Tow-Pro Elite V3 is a high-end, Australian-made trailer brake controller designed for smooth and precise towing. It offers two distinct braking modes: Proportional, which automatically matches the trailer’s braking to the tow vehicle’s deceleration for highway driving, and User-Controlled, which allows manual adjustment of braking force for off-road or low-traction conditions.
Its three-axis accelerometer allows the main unit to be mounted in any orientation behind the dash, making installation flexible and convenient. The unit’s compact design ensures only a small control knob is visible, providing a clean, factory-look finish.
A standout feature of the Tow-Pro Elite V3 is Active Calibration, which automatically detects the direction of travel to deliver immediate and accurate braking response every time the trailer is hitched. This eliminates the need for manual calibration and ensures consistent, synchronized stops.
Safety features include trailer sway control via SwayStop Plus, a manual override lever for emergencies, and a Park Brake function that applies trailer brakes when the vehicle is stationary for more than three seconds. These features provide enhanced control and peace of mind, especially when hauling heavy loads or using uneven terrain.
The Elite V3 is compatible with both 12V and 24V vehicles and works with electric and electric-over-hydraulic braking systems, making it suitable for a wide range of trailers, from small campers to large, high-capacity loads.
Its software provides smooth, proportional braking that mimics the towing vehicle’s behavior, preventing jerking or uneven stops. Users appreciate its reliable performance and ability to handle both everyday highway towing and more challenging conditions with the same level of control.
The REDARC Tow-Pro Elite V3 is praised for its reliability, versatility, and discreet design. While installation may require professional help in some vehicles and its price is higher than basic controllers, its dual-mode functionality, active calibration, and compact, hidden installation make it an excellent choice for drivers who tow heavy trailers or frequently switch between highway and off-road conditions. The controller provides confidence, safety, and precision in every towing situation.

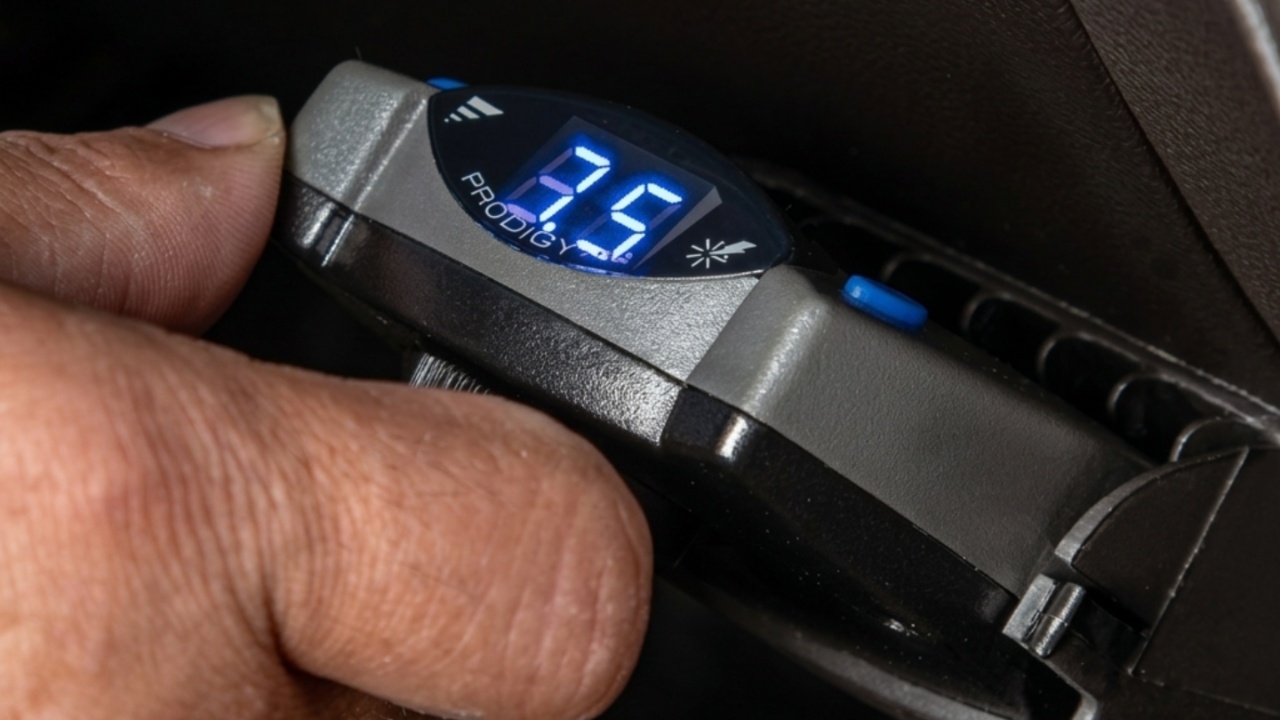

3. Tekonsha Prodigy P2: Reliable Proportional Braking for Heavy Trailers
The Tekonsha Prodigy P2 is a long-standing favorite among trailer brake controllers due to its simplicity, reliability, and smooth proportional braking. Designed for trailers with one to four axles, the P2 automatically adjusts braking power to match the tow vehicle’s deceleration, providing consistent, controlled stops.
This proportional system reduces wear on both the trailer and vehicle brakes while eliminating jerking or pushing during braking. The unit is self-leveling and can be mounted at nearly any vertical angle, ensuring proper operation on various inclines and in tight or uneven spaces.
A key feature of the Prodigy P2 is its Boost function, which allows drivers to apply up to 25% more initial braking power. This is especially useful when hauling heavier trailers or horse floats, providing added stopping force when needed most.
The controller also operates proportionally in reverse, which is critical for safely maneuvering trailers into confined spaces. An easy-to-read LED display provides voltage monitoring and troubleshooting codes, while the manual override slider allows drivers to apply trailer brakes independently for safety or emergency situations.
The P2 is highly versatile, supporting electric and electric-over-hydraulic braking systems for trailers with up to four axles. Installation is straightforward, with a plug-and-play setup using vehicle-specific wiring harnesses, and the quick-disconnect feature allows the unit to be easily removed for storage.
Its compact and practical design, combined with self-leveling capabilities, ensures reliable performance across a wide range of towing applications without the need for constant adjustments.
The Tekonsha Prodigy P2 is praised for its smooth braking, dependable operation, and value for money. While its LED display is simpler than the upgraded P3 model and some users report slightly aggressive braking at very low speeds, it remains one of the best mid-range options for frequent travelers.
Offering near-premium performance at a moderate price point, the Prodigy P2 provides safety, control, and ease of use, making it a highly recommended choice for drivers hauling heavy trailers or multiple loads.

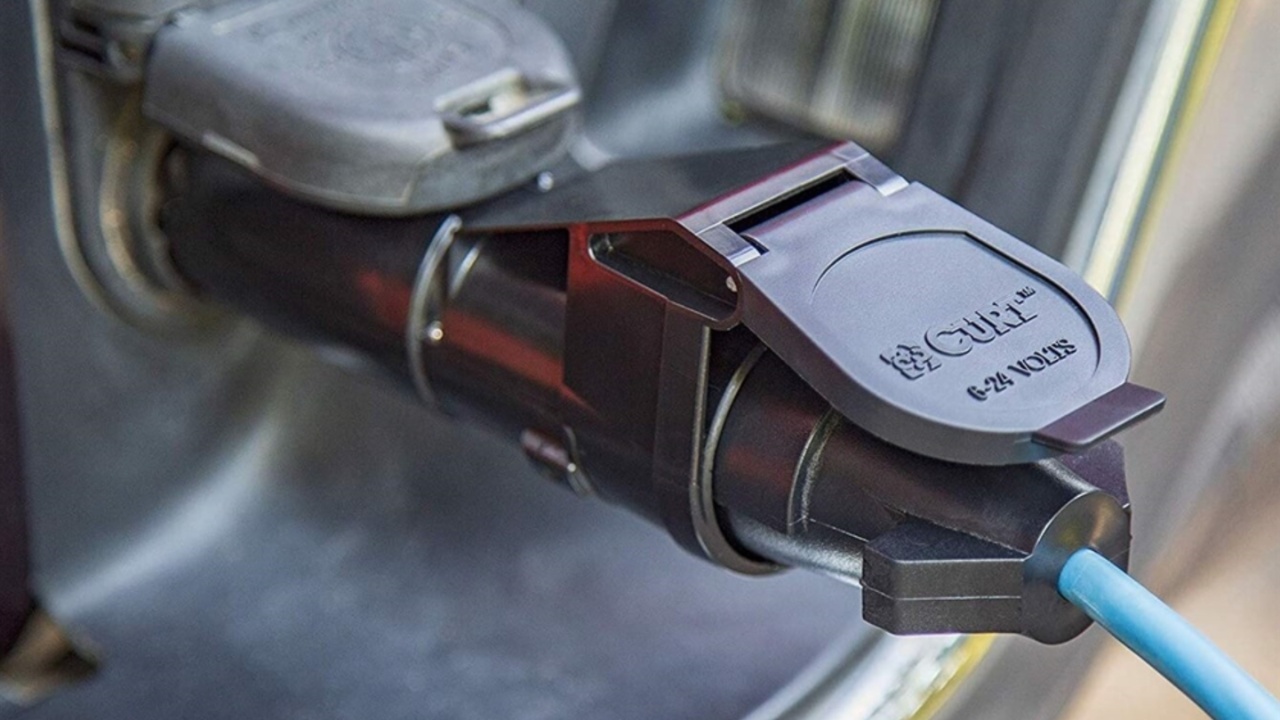

4. CURT Echo Mobile Brake Controller: Wireless, App-Based Towing Control
The CURT Echo Mobile Brake Controller is a revolutionary wireless solution designed to simplify trailer braking without any under-dash wiring. It plugs directly into a standard 7-way connector and pairs with a smartphone via Bluetooth, allowing the phone to act as the control interface.
Using a triple-axis accelerometer, the Echo provides proportional braking that mirrors the tow vehicle’s deceleration, delivering smooth, non-jerky stops for trailers with up to four axles. Its plug-and-play design makes it highly portable, ideal for users who frequently switch between different vehicles or trailers.
A major advantage of the Echo is its smartphone app control, which enables real-time adjustment of gain, sensitivity, and maximum braking output. Users can create and save multiple custom profiles for different trailers, loads, or tow vehicles, allowing quick adaptation to changing hauling conditions.
The app also displays braking activity and includes a built-in panic button for emergency braking. Even if the phone loses connection, the controller continues to function safely, ensuring reliable braking performance during critical moments.
Installation is exceptionally simple compared to traditional brake controllers. The Echo plugs directly into the vehicle’s 7-way RV blade socket, requiring no tools or dashboard modifications. This eliminates clutter, preserves knee space, and allows easy transfer between vehicles.
Its wireless and compact design also reduces installation time, making it suitable for temporary setups, rental vehicles, or occasional towing needs. The proportional braking technology ensures superior control compared with time-delay systems, improving safety and minimizing wear on both trailer and tow vehicle brakes.
While the Echo offers convenience and modern functionality, there are some considerations. It is phone-dependent, requiring a smartphone for adjustments, and its external placement can make it susceptible to theft or vibration-related connection issues, sometimes necessitating a securing strap.
It is also generally more expensive than traditional hardwired controllers. Despite these minor drawbacks, the CURT Echo Mobile Brake Controller is highly rated for its portability, ease of use, and advanced proportional braking, making it an excellent choice for drivers seeking a wireless, app-based solution without permanent installation.

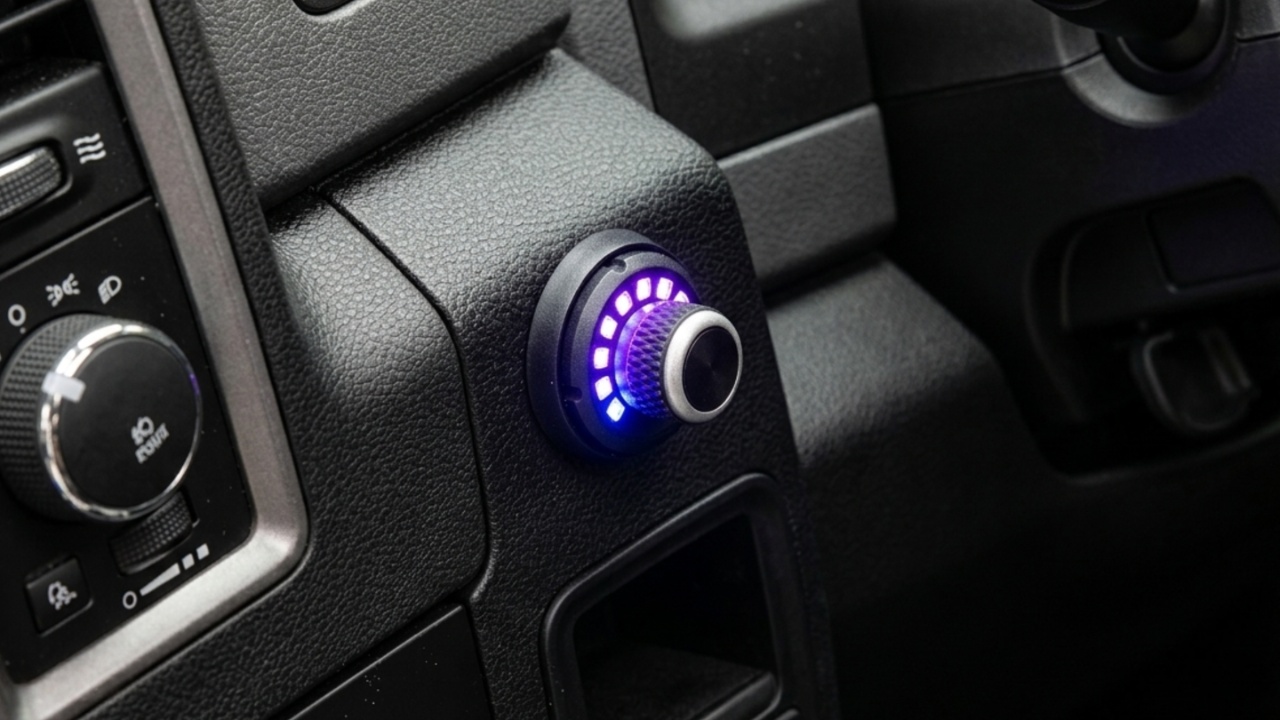

5. CURT Spectrum Original: Compact, Proportional Braking for Heavy Trailers
The CURT Spectrum Original is a highly regarded trailer brake controller designed for heavy-duty towing while maintaining a sleek, unobtrusive dashboard presence. It delivers proportional braking using a triple-axis accelerometer, which senses vehicle momentum in all directions, including forward, uphill, and downhill, to apply precise braking force to up to four axles or eight brakes.
Unlike time-delay controllers, the Spectrum mirrors the tow vehicle’s braking intensity, providing smooth, linear stops that prevent the trailer from pushing or jerking the vehicle. Its compact design is ideal for modern trucks where dashboard space is limited, while still providing the heavy-duty braking performance needed for safe highway towing.
The Spectrum offers high-performance capacity for trailers with one to four axles and supports both electric and electric-over-hydraulic braking systems. It is compatible with complex vehicle safety systems such as cruise control and ABS, ensuring smooth operation without interference.
With ten levels of sensitivity and gain control, the controller allows precise adjustment to match trailer weight and road conditions. Manual override is included via a push-button on the rotary knob, giving drivers immediate control over braking in emergencies or for controlling trailer sway.
The user interface consists of a single, dash-mounted rotary knob with ten tri-color LEDs that provide instant feedback on braking activity and intensity. All gain and sensitivity adjustments are made through this knob, combining simplicity with real-time visual feedback.
The main module is hidden behind the dash, leaving only the small, OEM-style knob visible, providing a clean installation while avoiding interference with knee space. Automatic leveling and calibration simplify setup for different trailers, ensuring consistent proportional braking without the need for frequent adjustments.
The CURT Spectrum Original is praised for its reliability, smooth braking, and modern integrated design. While installation requires drilling a small hole for the knob and the price is higher than standard controllers, users value its precise proportional braking, compatibility with multiple axles and trailer types, and hidden module for a clean dash.
For drivers seeking high-performance, heavy-load braking in a compact, aesthetically integrated package, the Spectrum offers excellent safety, control, and convenience.
Also read: 5 Cars With Excellent Air Conditioning for Hot Climates vs 5 That Struggle

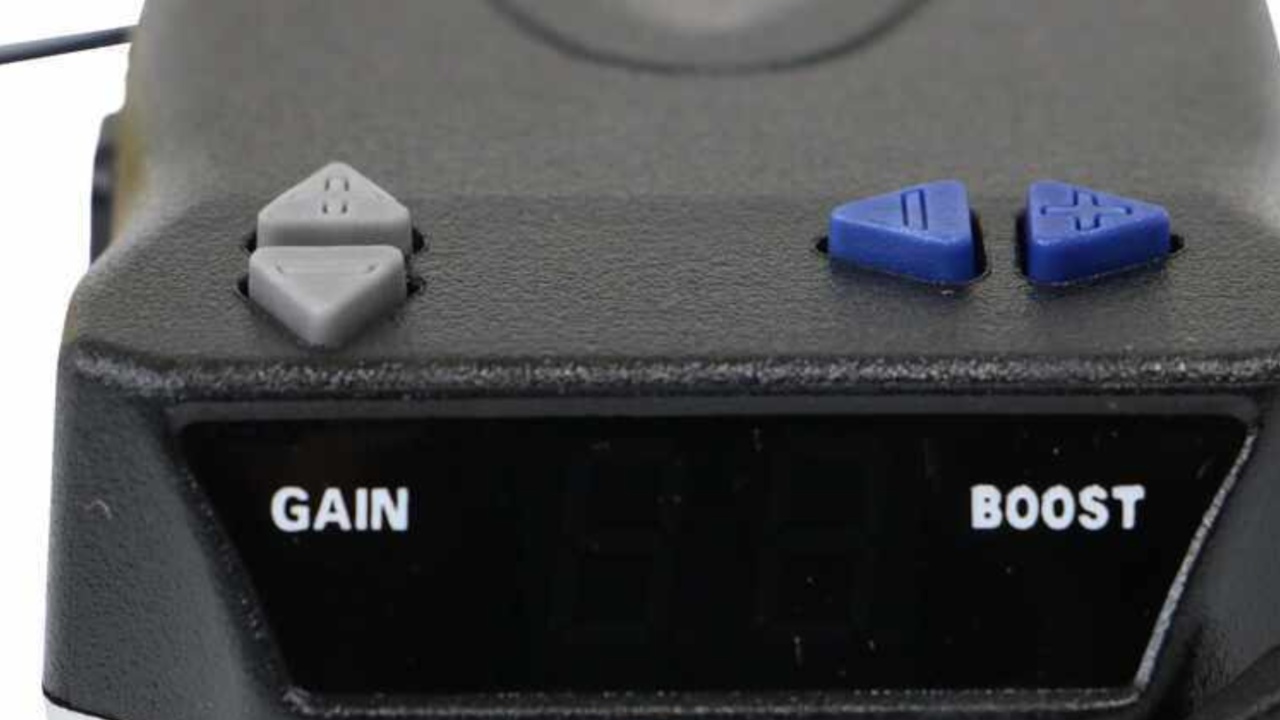

6. Draw-Tite 5535 Trailer Brake Control: Compact Proportional Braking for Heavy Loads
The Draw-Tite 5535 Trailer Brake Control is a compact, proportional brake controller designed for trailers with up to four axles. It uses an inertial sensor to match the trailer’s braking intensity with the deceleration of the tow vehicle, providing smooth, predictable stops and reducing brake wear.
This proportional technology ensures consistent performance on flat roads as well as uphill and downhill grades. The unit is self-leveling, eliminating the need to mount it at a specific angle, and its manual override is positioned for quick access, allowing drivers to apply brakes immediately during trailer sway or emergency situations.
A key feature of the 5535 is its Boost function, which provides extra initial braking power for heavy or slow-to-respond trailers. Drivers can select from three levels of additional braking force, making it ideal for towing horse floats, large campers, or other heavy loads.
The combination of proportional braking and Boost ensures that trailers stop smoothly and stay in sync with the tow vehicle, improving safety and control on highways and steep inclines.
The unit includes an easy-to-read LED display that shows output levels, voltage, and diagnostic information. This allows users to quickly verify connections and troubleshoot any potential issues.
The Draw-Tite 5535 also offers flexible installation options, supporting both vertical and horizontal mounting on a variety of dashboards. Plug-and-play wiring harnesses simplify setup, enabling most users to install the controller in under an hour without requiring manual leveling adjustments.
The Draw-Tite 5535 I-Command is praised for its compact design, proportional braking performance, and user-friendly operation. While some users may need to consult the manual for interpreting diagnostic codes, and the mounting bracket may feel less robust than premium models, its smooth braking, reliability, and ease of installation make it a strong choice for frequent towing.
Drivers looking for high-quality proportional braking at a competitive price will find that the Draw-Tite 5535 provides safe, controlled stopping power for heavy trailers without complicated setup or adjustments.
7. Tekonsha Primus IQ: Mid-Range Proportional Braking for Heavy Loads
The Tekonsha Primus IQ is a high-value, mid-range trailer brake controller that offers proportional braking performance for trailers with one to three axles. It uses an inertia sensor to measure the tow vehicle’s deceleration and applies the same braking force to the trailer, ensuring smooth and safe stops.
This proportional technology reduces jerking and prevents the trailer from pushing or dragging the towing vehicle. The controller remains proportional even when reversing, a feature that is uncommon in this price range, which makes backing heavy trailers safer and more controlled.
A key advantage of the Primus IQ is its Boost feature, which provides three levels of additional initial braking power. This is especially useful for towing heavier loads or stopping quickly on hilly terrain.
The controller is compatible with both electric and electric-over-hydraulic braking systems and includes self-leveling technology, allowing it to function properly even when mounted on dashboards at varied angles within a 90-degree range. Its snap-in mounting clip and plug-and-play vehicle-specific harness simplify installation, making it accessible for both new and experienced tow vehicle owners.
The unit features a digital LED display that provides real-time voltage monitoring and diagnostics. Drivers can quickly verify the connection status, detect faults, and confirm that the trailer brakes are receiving the correct voltage.
A manual override lever is included at the base of the unit, giving drivers the ability to manually apply trailer brakes if needed to control sway or for emergency stops. This combination of proportional braking, Boost, and digital feedback ensures safe and predictable stopping performance while reducing wear on both vehicle and trailer brakes.
The Tekonsha Primus IQ is widely recognized for delivering dependable proportional braking at a competitive price. While it does not offer multiple trailer memory or the advanced features of premium models like the Prodigy P3, it provides smooth, reliable performance for most recreational and utility towing needs.
Its self-leveling design, easy installation, and adjustable Boost feature make it an excellent choice for towing campers, travel trailers, and utility trailers up to three axles. For drivers seeking a balance between affordability and effective proportional braking, the Primus IQ offers strong value without compromising safety or control.
8. CURT TriFlex NEXT: Advanced Proportional Braking for Heavy Trailers
The CURT TriFlex NEXT is a high-performance proportional brake controller designed for trailers with one to four axles. It uses a triple-axis accelerometer to sense vehicle deceleration and apply proportional braking to the trailer, ensuring smooth, controlled stops.
This technology reduces the common “push-pull” effect associated with heavy trailers and provides consistent braking performance across flat terrain, uphill, and downhill grades. The controller includes an Auto-Level function, eliminating the need for manual leveling during installation, which allows for flexible mounting angles and a clean, compact profile that does not interfere with driver legroom.
A standout feature of the TriFlex NEXT is its automatic power adjustment. The controller actively monitors slopes and modifies braking force in real time to manage the inertia of heavy loads.
Drivers can also customize the sensitivity of the braking response to match the trailer weight and driving conditions, allowing either smoother, gradual stops or more aggressive braking when necessary. This level of control enhances safety, minimizes brake wear, and ensures predictable handling for trailers of varying weights and configurations.
The unit is compatible with electric and electric-over-hydraulic brake systems and supports anti-lock brakes, cruise control, low-voltage systems, and pulse-width modulation (PWM) controls. It can manage two to eight trailer brakes, making it suitable for a wide range of trailers from light utility loads to heavier, multi-axle setups.
A clear LED display provides real-time feedback on gain settings, voltage output, and troubleshooting codes, helping users monitor performance and diagnose potential issues quickly.
Users praise the CURT TriFlex NEXT for its easy installation, smooth braking, and modern, user-friendly display. While some vehicle-specific wiring adapters may need to be purchased separately, and some drivers prefer longer-established brands like Tekonsha, the TriFlex NEXT delivers performance that often matches more expensive premium controllers.
Its proportional braking, auto-leveling, customizable sensitivity, and compact design make it an excellent choice for both novice and experienced tow vehicle operators who need reliable, precise, and safe stopping power for trailers ranging from light-duty to heavy, multi-axle loads.

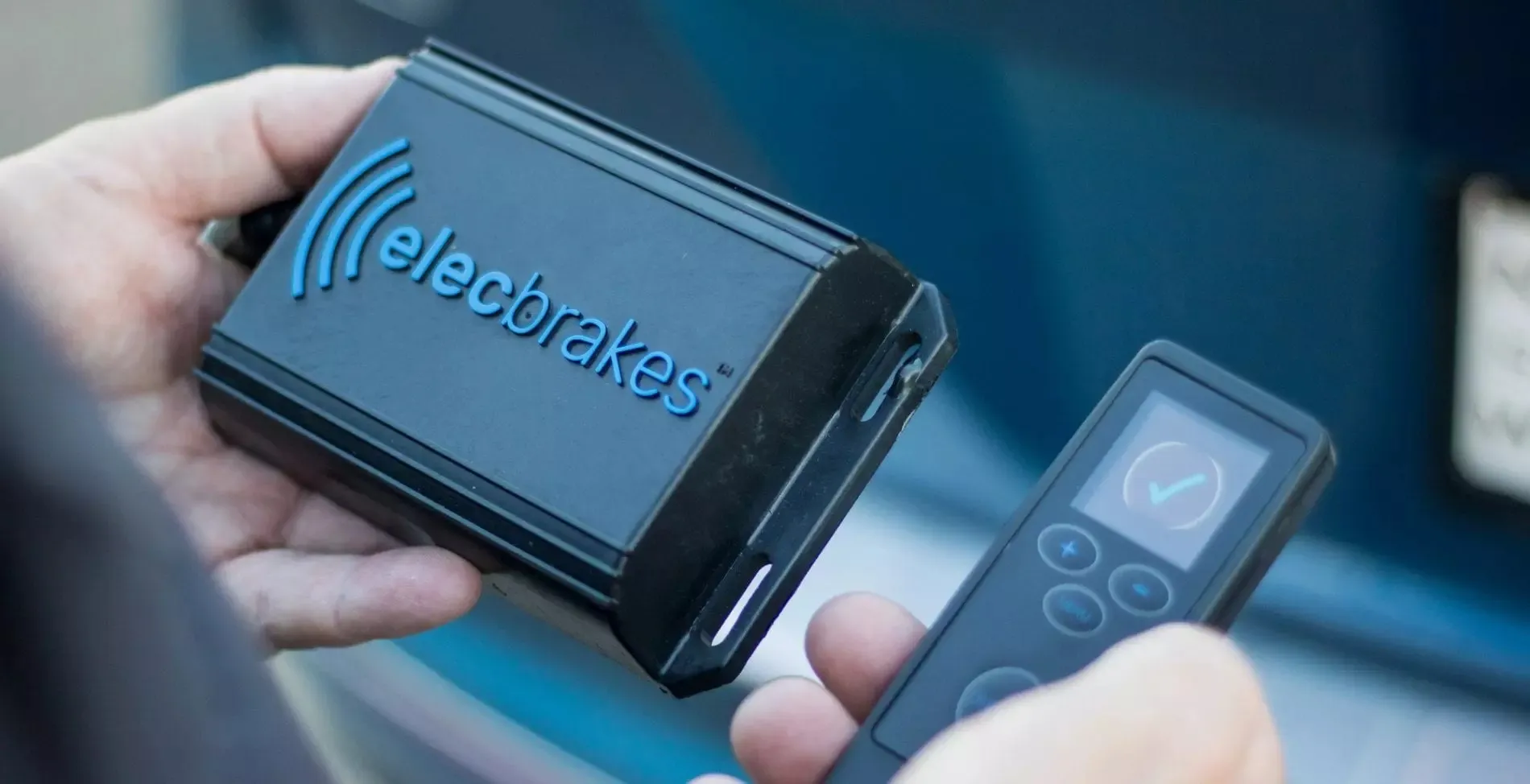

9. Elecbrakes Wireless Brake Controller: Trailer-Mounted Proportional Braking for Heavy Loads
The Elecbrakes Wireless Brake Controller is a trailer-mounted, Bluetooth-enabled system designed to provide proportional braking without requiring in-cab installation. Unlike traditional controllers that mount inside the tow vehicle, this unit stays with the trailer, allowing any vehicle with a standard 7-pin plug to tow safely and efficiently.
It uses a high-speed microprocessor and a triple-axis accelerometer to detect deceleration and apply matching trailer braking power up to 1,000 times per second. This ensures smooth, predictable stops and reduces jerking or push-pull effects, even when hauling heavy caravans, boats, or machinery.
A defining feature of Elecbrakes is its intelligent proportional technology. It continuously adjusts braking force in real time, including slope compensation for downhill grades, and offers a minimum initial braking setting to prevent the on-off jerky feeling of cheaper systems.
Drivers can customize braking sensitivity to match load weight and road conditions, improving safety and reducing brake wear. The controller supports up to two axles and trailers weighing up to 4.5 tonnes. Recent models include integrated sway control to stabilize trailers during high-speed or windy conditions, further enhancing safety for heavy towing.
Elecbrakes also prioritizes flexibility and ease of use. The system mounts on the trailer using screws or cable ties and connects directly between the trailer plug and the tow vehicle. Braking is managed via a smartphone app compatible with Apple CarPlay and Android Auto, or through an optional wireless remote.
Users can save up to five custom profiles for different trailers or load conditions, which can be quickly swapped depending on towing requirements. The unit is waterproof, dustproof, and encased in durable urethane resin, ensuring reliable operation in harsh environments.
Users appreciate Elecbrakes for its convenience and performance, especially for shared trailers or commercial fleets. Its plug-and-play installation eliminates the need for dashboard modifications, making it simple to transfer between tow vehicles.
While the system relies on phone connectivity and has a higher price point than traditional controllers, it delivers consistent, smooth proportional braking, customizable load settings, and robust safety features. The updated EB2 version further improves reliability and integration with vehicles already equipped with wired brake controllers, making it a versatile choice for frequent and heavy-duty towing applications.
10. Demco Duo Braking System: Permanent Proportional Braking for Flat-Towing Vehicles
The Demco Duo Braking System is specifically engineered for flat-towing vehicles, also known as dinghies, behind motorhomes. It provides progressive, proportional braking that mirrors the RV’s deceleration, ensuring smooth, synchronized stops and reducing stopping distance for heavy rigs.
Unlike portable controllers, the Duo is a permanent, “stay-in-play” system, meaning once installed, it requires no setup for future trips. This makes it exceptionally convenient for frequent towing, as the system is always ready to engage when the umbilical cord between the RV and towed vehicle is connected.
A key advantage of the Demco Duo is its true proportional and progressive braking. The system uses a G-Force controller to sense the RV’s braking intensity and applies the exact same force to the towed vehicle’s brakes. This prevents the towed vehicle from pushing the RV in traffic and provides a panic-stop function capable of applying up to three times normal braking power in emergencies.
Dual-signal activation ensures reliable operation by requiring both deceleration and the RV’s brake-light signal before applying brakes, eliminating false triggers over bumps or steep grades. This combination of speed and precision makes the Duo particularly effective for heavy loads.
The system also incorporates vacuum-assisted power brake engagement, which leverages the towed vehicle’s own power brakes for natural, smooth stopping. Only about 10 pounds of force is required to operate the system, reducing wear on the toad’s brake components while maintaining responsive braking performance.
This design ensures that even under heavy towing, braking feels controlled and predictable, avoiding harsh or jerky stops common with less advanced setups.
Installation is permanent and hidden under the hood and around the brake pedal, leaving the cabin uncluttered. The system activates instantly when the umbilical is connected, with no boxes to set up or cables to manage.
Additional safety features include a dashboard notification indicating when the towed vehicle’s brakes are active and an integrated breakaway switch that safely stops the vehicle if disconnected from the RV.
While installation is more involved, requiring wiring, vacuum lines, and mechanical mounting, the Demco Duo provides a reliable, “set it and forget it” solution for frequent flat-towers. Its proportional braking, vacuum-assist, and permanent installation make it a top choice for safe, smooth, and heavy-duty towing.
Choosing the right brake controller is essential for hauling heavy loads safely and smoothly. Advanced proportional systems, such as the Tekonsha Prodigy P3, CURT TriFlex NEXT, and REDARC Tow-Pro Elite V3, offer precise braking that mirrors the tow vehicle’s deceleration, while compact and wireless options like CURT Echo and Elecbrakes provide flexibility for shared trailers or multiple vehicles.
For specialized flat-towing, the Demco Duo delivers permanent, progressive braking with vacuum-assist for natural, reliable stops. Features like adjustable boost, slope compensation, and multi-axle compatibility enhance control, reduce wear, and prevent jerky stops.
By understanding the strengths of each controller, drivers can select a system that balances ease of installation, advanced technology, and heavy-load performance. Investing in a high-quality brake controller ensures safer towing, more comfortable handling, and peace of mind every time you hit the road with a heavy trailer or RV.
