Payload capacity is one of the clearest measures of a pickup truck’s working ability. Unlike maximum towing capacity, payload measures how much weight the truck can carry on the vehicle itself, including occupants, cargo, and applicable equipment.
For contractors, farmers, fleet operators, and owners carrying heavy materials, a few hundred pounds of extra capacity can significantly change how a truck is used.
This 2026 ranking focuses on full-size pickups sold in the United States and orders them by their maximum manufacturer-published payload ratings. Heavy-duty and light-duty models are included because the title covers the broader full-size truck market.
The figures represent the maximum available ratings, which require specific combinations of cab, bed, drivetrain, engine, and equipment. A heavily optioned crew cab can carry far less than the maximum advertised figure.
The difference between first and tenth place is substantial. Ford’s leading heavy-duty truck reaches an 8,000-pound maximum payload rating, while light-duty pickups near the lower end remain closer to 2,000 pounds. Manufacturer specifications from Ford, Ram, Chevrolet, GMC, and Toyota form the basis of this ranking.
Also Read: 10 SUVs That Are Easiest to Get In and Out Of

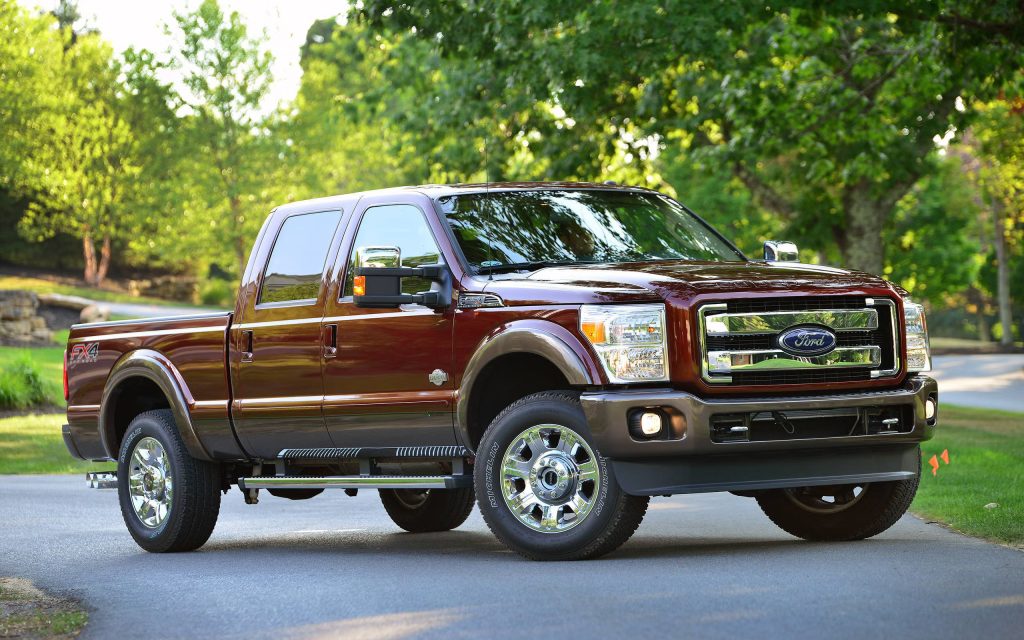

1. Ford F-350 Super Duty: 8,000 Pounds
No truck in this ranking begins with a more striking payload number than the 2026 Ford F-350 Super Duty. Ford publishes a maximum available payload rating of 8,000 pounds for the Super Duty pickup lineup, and the company’s 2026 towing information ties the highest payload configuration to the F-350.
Reaching that figure requires the correct truck specification rather than simply choosing any F-350 from a dealership lot.
The key is configuration. Maximum payload ratings favor trucks with high gross vehicle weight ratings and relatively low curb weights. Ford’s published material notes that payload varies with accessories and vehicle configuration. The doorjamb label remains the final authority for the carrying capacity of an individual truck.
An 8,000-pound maximum changes the F-350’s working possibilities. Large quantities of construction material, equipment, tools, and fifth-wheel pin weight can place enormous pressure on a pickup’s available carrying capacity.
This is why payload and towing figures should never be treated as interchangeable. A truck may have enough engine power to pull a trailer, but still exceed its payload rating once passengers, cargo, hitch hardware, and the trailer tongue or pin weight are factored in.
Ford offers four engines across the 2026 Super Duty family. The available high-output 6.7-liter Power Stroke diesel produces 500 horsepower and 1,200 lb-ft of torque, but maximum payload is not automatically linked to the most powerful diesel. Gas-powered configurations can have a payload advantage because diesel hardware adds curb weight.
For buyers chasing the full 8,000-pound figure, exact specifications matter more than trim badges. Ford’s number makes the F-350 the payload leader here, but the capacity label on the actual truck determines what it can legally and safely carry.
- Engine: 6.8-liter gasoline V8
- Torque: 445 lb-ft
- Horsepower: 405 hp
- Length/Width: Up to 266.2 inches / 80.0 inches

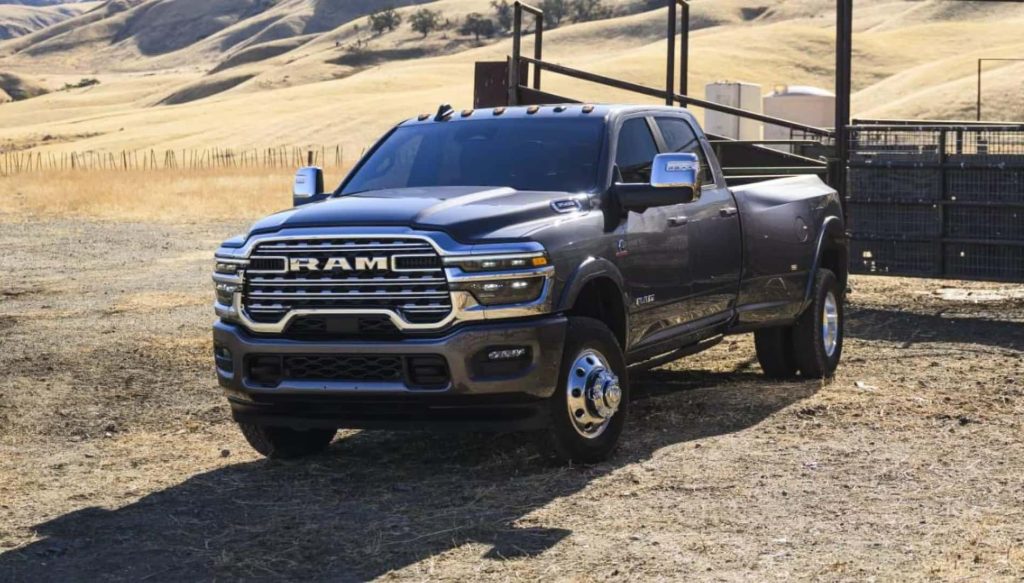

2. Ram 3500: 7,590 Pounds
Ram’s approach to maximum payload puts gasoline power at the center of the discussion. The 2026 Ram 3500 carries an official maximum gas payload rating of 7,590 pounds, placing it second in this ranking. By comparison, Ram lists the maximum diesel payload at 6,050 pounds.
That 1,540-pound difference demonstrates how engine weight and truck configuration can affect carrying capacity. Under the hood of the maximum gas-payload side of the lineup is Ram’s 6.4-liter HEMI V8. For 2026, the engine produces 405 horsepower and 429 lb-ft of torque. It is paired with an eight-speed automatic transmission.
Buyers may be drawn immediately to the available high-output 6.7-liter Cummins turbo-diesel, particularly because it generates 1,075 lb-ft of torque and supports a maximum diesel towing capacity of 36,610 pounds. Payload priorities create a different calculation.
The Ram 3500’s 7,590-pound maximum is especially relevant for owners who load the bed heavily rather than spending most of their time pulling maximum-weight trailers.
A contractor carrying dense materials has different requirements from an owner towing a large fifth-wheel. In the first situation, available payload can become the limiting factor long before engine output does.
Body selection also matters. Regular Cab, Crew Cab, two-wheel-drive, four-wheel-drive, single-rear-wheel, and dual-rear-wheel versions do not share one universal payload rating. Added equipment increases curb weight, reducing the amount of remaining capacity between the truck’s actual weight and its gross vehicle weight rating.
That is what makes the Ram 3500’s second-place result significant. Its 7,590-pound figure is not a broad promise for every trim. It represents the peak capability of a carefully configured truck.
For maximum payload buyers, the gas HEMI configuration deserves particular attention instead of automatically selecting the Cummins diesel simply because it produces far more torque.
- Engine: 6.4-liter HEMI V8
- Torque: 429 lb-ft
- Horsepower: 405 hp
- Length/Width: Up to 260.8 inches / 83.5 inches
3. Chevrolet Silverado 3500 HD: 7,237 Pounds
Chevrolet’s strongest payload contender reaches into territory where bed capacity becomes a central purchasing decision rather than a secondary specification. The Silverado 3500 HD carries a maximum available payload rating of 7,237 pounds in Chevrolet’s published HD specifications.
That figure places the truck third in this ranking and demonstrates how much carrying ability can be extracted from a properly configured one-ton pickup.
Reaching the maximum requires careful attention to the build sheet. Cab style, drivetrain, rear-wheel configuration, engine choice, and installed options all influence curb weight and available payload.
A luxurious crew cab with four-wheel drive and additional equipment will not carry the same weight as a lighter work-oriented configuration. Chevrolet specifically warns that maximum payload figures are intended for comparison and actual capacity depends on vehicle configuration.
Engine selection presents an interesting tradeoff. The 6.6-liter gasoline V8 develops 401 horsepower and 464 lb-ft of torque, while the available Duramax 6.6-liter turbo-diesel V8 produces 470 horsepower and 975 lb-ft.
The diesel’s enormous torque supports Chevrolet’s maximum available 36,000-pound trailering figure, but the heavier diesel powertrain does not automatically deliver the highest payload. Chevrolet’s 2026 HD specifications confirm these powertrain outputs and maximum towing capability.
For jobsite buyers, 7,237 pounds provides substantial room for tools, materials, occupants, and bed-mounted equipment. The Silverado 3500 HD earns third place because its maximum payload rating remains one of the highest published figures for a full-size pickup sold in America.
- Engine: 6.6-liter gasoline V8
- Torque: 464 lb-ft
- Horsepower: 401 hp
- Length/Width: Up to approximately 266 inches / 81.9 inches

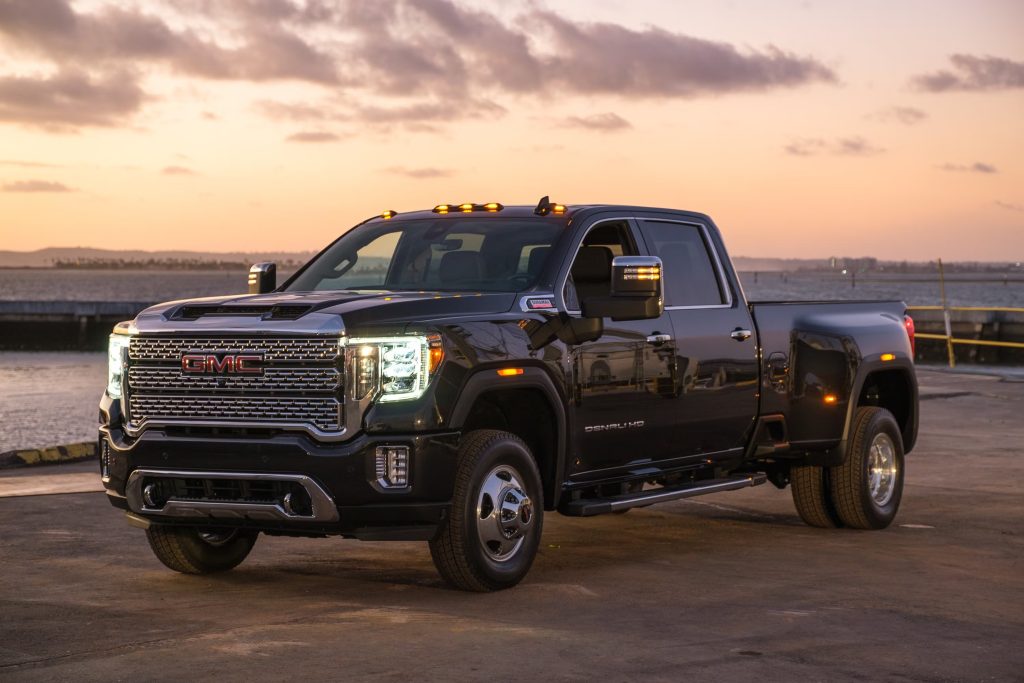

4. GMC Sierra 3500 HD: 7,000+ Pounds
The GMC Sierra 3500 HD shares its basic heavy-duty engineering foundation with the Chevrolet Silverado HD, but its position in the market has a different character. GMC combines serious commercial capability with trims extending into luxury territory.
At the work-focused end of the lineup, properly configured Sierra 3500 HD models can deliver payload capacity above 7,000 pounds, depending on cab, drivetrain, engine, and dual-rear-wheel configuration.
Payload variation is particularly important with the Sierra. GMC’s own 2026 configuration system displays maximum payload capacity for individual builds rather than treating one figure as universal.
For example, GMC lists 4,590 pounds of maximum payload for one 2026 Sierra 3500 HD configuration in its online specification tool. Changing the truck’s hardware can substantially alter that number.
The standard 6.6-liter gasoline V8 is the logical engine to examine when payload is the priority. GMC rates it at 401 horsepower and 464 lb-ft of torque, paired with an Allison 10-speed automatic transmission.
Buyers focused on pulling maximum trailer weight can choose the 6.6-liter Duramax turbo-diesel V8, which generates 470 horsepower and 975 lb-ft of torque. GMC advertises up to 36,000 pounds of available towing for the Sierra HD family.
Where the Sierra differs is in the breadth of personalities offered under one name. A Pro Work Truck and a Denali Ultimate may share basic HD architecture, yet their curb weights and intended buyers are very different. Added luxury equipment consumes available carrying capacity, making the payload sticker essential when comparing trucks.
For buyers chasing the highest number, a lightly equipped 3500 HD work configuration is the smarter direction. The Sierra’s strength comes from allowing customers to choose between a dedicated hauling machine and a heavily appointed premium truck without abandoning the heavy-duty platform.
- Engine: 6.6-liter gasoline V8
- Torque: 464 lb-ft
- Horsepower: 401 hp
- Length/Width: Up to 266.8 inches / approximately 82 inches

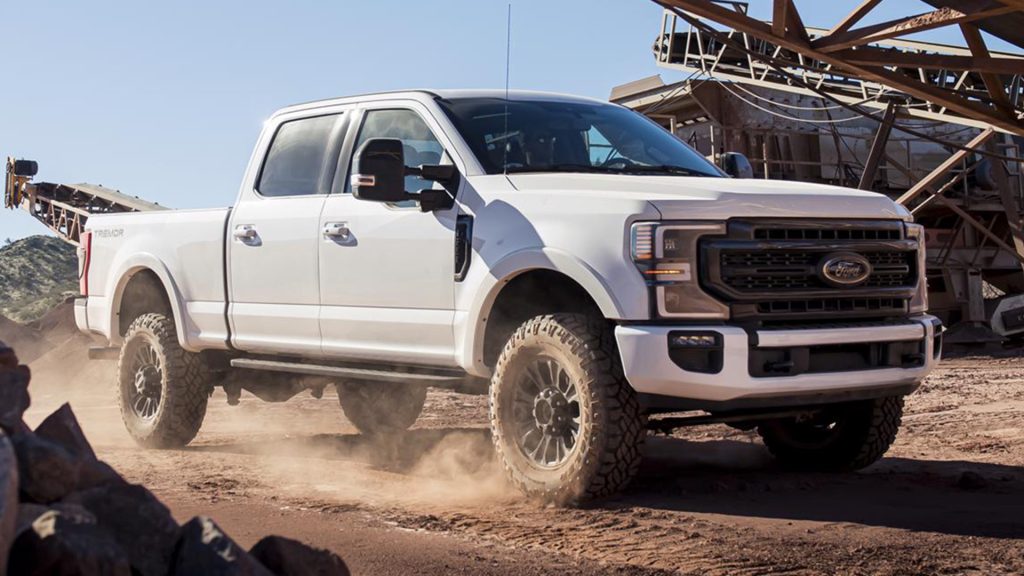

5. Ford F-250 Super Duty: 4,246 Pounds
Moving from one-ton trucks into the three-quarter-ton class changes the payload numbers considerably, but the Ford F-250 Super Duty still offers serious bed-carrying ability.
For 2026, the F-250 reaches a maximum available payload capacity of 4,246 pounds in the correct configuration. That figure gives Ford’s three-quarter-ton pickup fifth place in this ranking and places it ahead of its direct heavy-duty competitors.
The maximum rating should not be confused with the capacity of every F-250. Ford calculates payload by subtracting the truck’s actual curb weight from its applicable gross vehicle weight rating. Cab selection, four-wheel drive, optional equipment, and powertrain weight can all reduce the remaining carrying capacity.
This is why an F-250 Platinum equipped for luxury may display a significantly lower payload number on its certification label than a work-focused truck.
Ford provides four Super Duty engine choices for 2026. The standard 6.8-liter gasoline V8 develops 405 horsepower and 445 lb-ft of torque. A 7.3-liter gasoline V8 is also available, while diesel buyers can select regular-output and high-output versions of the 6.7-liter Power Stroke V8.
Payload-focused shoppers should resist choosing an engine based only on peak torque. The 500-horsepower high-output Power Stroke generates 1,200 lb-ft, making it a remarkable towing engine, but diesel components add weight to the truck. A lighter gasoline configuration can preserve more carrying capacity.
At 4,246 pounds, the F-250’s maximum payload makes it particularly useful for commercial equipment, construction supplies, and substantial trailer tongue weight. Ford’s 2026 Super Duty data confirms an 8,000-pound maximum for the wider Super Duty family, while F-250 configuration data puts its peak carrying ability at 4,246 pounds.
- Engine: 6.8-liter gasoline V8
- Torque: 445 lb-ft
- Horsepower: 405 hp
- Length/Width: Up to approximately 266 inches / 80.0 inches
6. GMC Sierra 2500 HD: 4,049 Pounds
A difference of fewer than 200 pounds separates sixth place from the F-250, showing just how closely matched modern three-quarter-ton pickups have become.
The 2026 GMC Sierra 2500 HD carries a maximum available payload rating of 4,049 pounds, according to GMC’s U.S. specifications. GMC also lists a maximum available towing capacity of 22,390 pounds for the Sierra 2500 HD.
The configuration behind the highest payload figure is especially important. Detailed 2026 payload data identifies the Regular Cab Long Bed with two-wheel drive, the 6.6-liter gasoline V8, and the appropriate wheel configuration as the Sierra 2500 HD setup capable of reaching 4,049 pounds.
That is a very different truck from a crew cab Denali Ultimate fitted with four-wheel drive and extensive comfort equipment.
GMC’s standard gasoline engine produces 401 horsepower and 464 lb-ft of torque. It works with a 10-speed Allison automatic transmission. The available 6.6-liter Duramax turbo-diesel V8 increases output to 470 horsepower and 975 lb-ft of torque, but the diesel’s additional hardware affects curb weight and available payload.
This is where buyers need to separate hauling priorities from towing priorities. A contractor regularly placing dense cargo directly in the bed may gain more practical capacity from the gas truck. Someone pulling a large trailer could place greater value on the Duramax engine’s 975 lb-ft of torque.
The Sierra also demonstrates how luxury equipment can influence a working specification. GMC offers the HD in configurations ranging from the job-focused Pro to the Denali Ultimate models. Every added feature contributes to vehicle weight, so two trucks wearing Sierra 2500 HD badges may have notably different payload labels.
Its 4,049-pound maximum earns sixth place through a carefully optimized work-truck configuration. For buyers who actually need that full figure, checking the individual truck’s payload certification label is essential before adding cargo, passengers, and trailer tongue weight.
- Engine: 6.6-liter gasoline V8
- Torque: 464 lb-ft
- Horsepower: 401 hp
- Length/Width: Up to approximately 266.8 inches / 81.9 inches
7. Chevrolet Silverado 2500 HD: 4,000+ Pounds
Chevrolet’s three-quarter-ton entry lands in seventh place, but its payload story cannot be reduced to one number across the entire lineup.
The 2026 Silverado 2500 HD is offered with different cab styles, bed lengths, drivetrains, and engines, and those choices directly affect how many pounds can legally be placed in or on the truck. Properly configured gas-powered versions can provide payload capacity around the 4,000-pound mark.
For maximum carrying ability, the 6.6-liter gasoline V8 deserves attention. Chevrolet rates this engine at 401 horsepower and 464 lb-ft of torque. A 10-speed Allison automatic transmission handles gear changes.
The available 6.6-liter Duramax turbo-diesel V8 is considerably stronger on paper, producing 470 horsepower and 975 lb-ft of torque, but its additional hardware adds curb weight.
That difference explains why the most powerful engine is not automatically the best payload choice. Chevrolet publishes a maximum available trailering rating of 36,000 pounds for the wider Silverado HD family when properly equipped, a figure closely associated with Duramax-powered 3500 HD configurations.
Carrying cargo in the bed presents a different engineering calculation. Chevrolet’s 2026 HD specifications confirm the gas and diesel powertrain outputs and maximum family towing rating.
A regular cab work truck can leave more capacity available for cargo than a feature-heavy crew cab. Passengers, toolboxes, bed accessories, and trailer tongue weight also count against the payload limit.
The Silverado 2500 HD’s strength is its flexibility. Buyers can build a basic jobsite truck or select a more comfortable long-distance towing configuration. Anyone who needs maximum payload should check the specific certification label rather than relying on a broad model-family advertisement.
- Engine: 6.6-liter gasoline V8
- Torque: 464 lb-ft
- Horsepower: 401 hp
- Length/Width: Up to approximately 266 inches / 81.9 inches

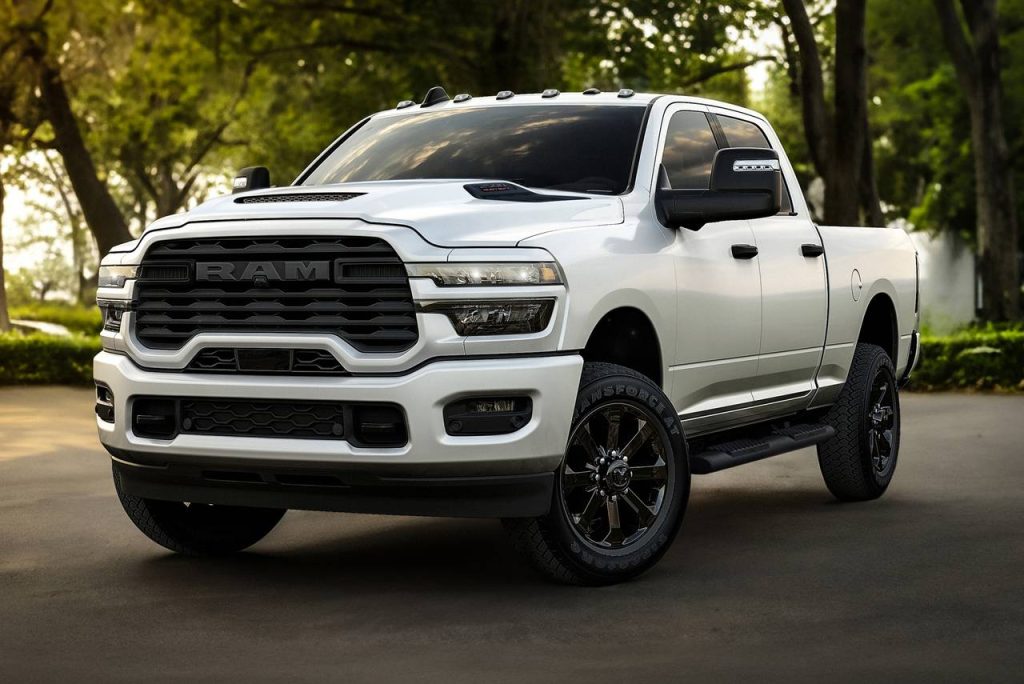

8. Ram 2500: 3,930 Pounds
Ram provides an unusually clear comparison between gasoline and diesel payload capacity for the 2026 Ram 2500. The official U.S. capability figures list a maximum gas payload of 3,930 pounds and a maximum diesel payload of 3,600 pounds. With the higher of those two ratings used for this payload ranking, the Ram 2500 takes eighth place.
The numbers make engine selection more interesting than simply choosing the powertrain with the greatest torque. Ram’s 6.4-liter HEMI V8 develops 405 horsepower and 429 lb-ft of torque.
In a properly configured Tradesman, Ram’s own specifications show the 3,930-pound payload rating. That gives the gas truck a 330-pound maximum payload advantage over the diesel.
Choose the high-output 6.7-liter Cummins turbo-diesel inline-six, and the truck’s personality changes. Its immense low-speed torque is aimed at trailer work, and Ram publishes a maximum diesel towing capacity of 20,000 pounds for the 2026 2500. The gasoline truck tops out at 17,750 pounds of maximum towing.
Payload buyers, therefore, face a genuine tradeoff. Someone carrying heavy tools, palletized materials, or bed-mounted equipment may benefit from the HEMI truck’s higher carrying limit. A driver frequently pulling a heavy trailer may value the Cummins engine’s diesel characteristics and additional maximum towing capacity more highly.
Trim selection can change the calculation again. Off-road hardware and luxury equipment add vehicle weight. One 2026 Ram 2500 Tradesman equipped with the Power Wagon package, for example, was rated at only 1,570 pounds of payload in instrumented test coverage, illustrating how dramatically configuration can alter capacity.
For the maximum published number, the gasoline Ram 2500 is the truck to choose. Its 3,930-pound rating secures eighth place and reinforces a recurring lesson in this ranking: more torque does not necessarily mean more payload.
- Engine: 6.4-liter HEMI V8
- Torque: 429 lb-ft
- Horsepower: 405 hp
- Length/Width: Up to approximately 260.8 inches / 83.5 inches
9. Ford F-150: 2,440 Pounds
Light-duty trucks finally enter the ranking at number nine, and the Ford F-150 arrives with a class-leading payload claim. Ford lists a best-in-class maximum available payload of 2,440 pounds for the 2026 F-150. That rating is achieved by a specific XL configuration, so buyers cannot assume every cab, engine, or drivetrain combination carries the same amount.
The F-150’s payload story is particularly interesting because Ford offers such a broad powertrain range. EcoBoost engines, a naturally aspirated V8, and the PowerBoost full hybrid give customers very different performance characteristics.
Yet horsepower and torque alone do not decide payload. Ford’s own towing guide explicitly treats horsepower, torque, payload, and towing as independent attributes.
Maximum carrying capacity favors a carefully selected work truck specification. Added luxury features, larger cabs, four-wheel-drive components, and heavier powertrains consume part of the truck’s available gross vehicle weight capacity.
Ford also states that maximum payload varies with accessories and vehicle configuration, directing owners to the doorjamb label for the carrying capacity of an individual pickup.
The 5.0-liter V8 provides a useful example of how specifications can differ from the headline maximum. Ford’s 2026 towing information lists 400 horsepower and 410 lb-ft of torque for this engine, while certain V8 configurations carry maximum payload ratings below the F-150’s 2,440-pound peak.
For commercial users who want light-duty dimensions without immediately moving into a Super Duty, the F-150’s maximum figure is significant. Its 2,440-pound rating gives Ford the highest published maximum payload among the major 2026 half-ton pickups and earns the truck ninth place in this broader full-size ranking.
- Engine: 5.0-liter V8
- Torque: 410 lb-ft
- Horsepower: 400 hp
- Length/Width: Up to approximately 243.5 inches / 79.9 inches
10. Ram 1500: 2,360 Pounds
The final position goes to the Ram 1500, but the engine responsible for its highest payload rating is not the most powerful choice in the catalog. Ram officially rates the 2026 truck for a maximum payload capacity of 2,360 pounds. Its detailed payload and towing chart identifies a Quad Cab 4×2 configuration as the setup capable of reaching that maximum.
More surprising is the powertrain attached to the payload leader. The 3.6-liter Pentastar V6 with eTorque produces 305 horsepower and 269 lb-ft of torque.
Ram’s engine-performance specifications directly list a 2,360-pound maximum payload for the 4×2 Pentastar configuration. The same engine has a maximum towing rating of 8,130 pounds.
That creates a sharp contrast with the available high-output 3.0-liter Hurricane engine. Ram offers as much as 540 horsepower in the 2026 1500 lineup, yet selecting a more powerful engine does not increase the truck’s maximum payload to a higher figure. The lighter Pentastar-equipped work configuration preserves more capacity for occupants and cargo.
Cab choice plays an equally important role. The 2,360-pound maximum belongs to a Quad Cab 4×2, according to Ram’s official 2026 chart. Crew Cab and four-wheel-drive versions add hardware and vehicle weight, reducing payload. For comparison, Ram lists a 1,790-pound maximum for the 4×4 Pentastar application in its engine-performance data.
This makes the Ram 1500 a fitting truck to close the ranking. Its strongest payload configuration proves that capability is often the result of weight management rather than maximum engine output.
At 2,360 pounds, the Ram sits only 80 pounds behind the F-150’s published maximum while retaining the ride and everyday usability expected from a modern half-ton pickup.
- Engine: 3.6-liter Pentastar V6 with eTorque
- Torque: 269 lb-ft
- Horsepower: 305 hp
- Length/Width: Up to 232.9 inches / 82.1 inches
